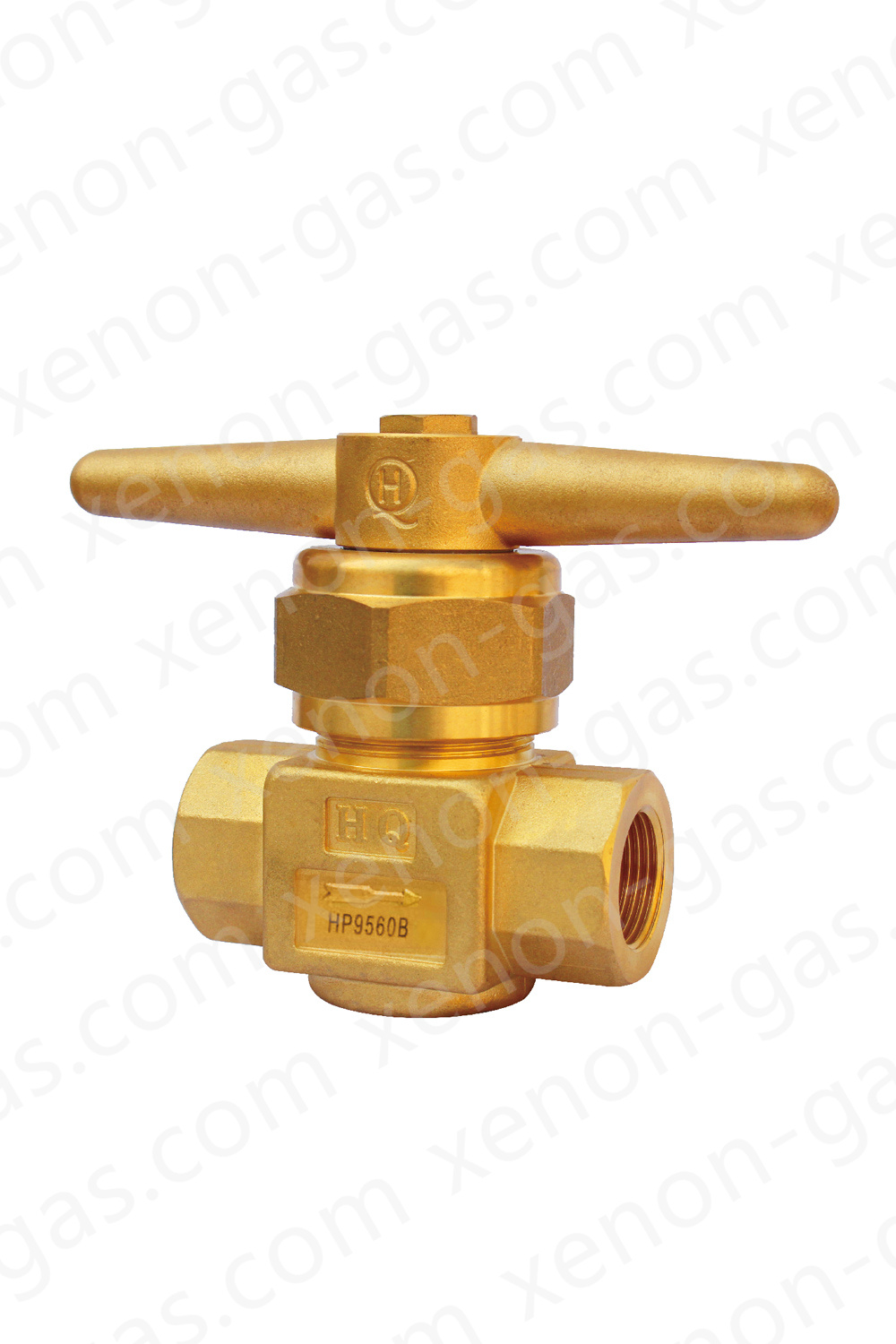

high pressure cut-off valve HP9560B

HP9560B high pressure stop valve is suitable for gas cylinder charging rack, pipe tank type semi-trailer and other high pressure multi-terminal devices and pipeline systems. With a non-riser design, the O-ring is durable. Large brass handwheel for low torque operation under pressure.

》Send Mail《
Categories: ,

Description

Technical Parameters

MWP: 380Bar，safety factor: 4:1
temperature range: -40°C~165°C
All valves used for oxygen are cleaned according to CGA G-4
100% factory tested
Air intake connection screw thread:NPT3/4
Air outlet connection screw thread:NPT3/4
Size: A=82mm B=88mm C=153mm

Material Selection

material:(high brass ( HPb59-1 )
handwheel:aluminium alloy
padding: PCTFE
sealing material: FKM、PTFE
