Sulfur Hexafluoride, SF6 Specialty Gas

CAS NO	2551-62-4
UN NO	UN1080
EINECS NO	219-854-2
Molecular weight	146.05
Appearance	Colorless, Odorless
Melting point	-50.8 ℃
Boiling point	-63.8 ℃
Density	6.0886 kg/m³
DOT Class	2.2
Label	Non-flammable Gas

》Send Mail《

Description

SF6 is a colorless gas with an irritating odor. It is widely used in electric appliances with excellent insulating and arc extinguishing properties.

It is also used in metal smelting for its some properties of chemically inert, non-toxic, non-combustible, and non-corrosive properties.

Application

Name: Sulfur Hexafluoride, SF6 Specialty Gas
SKU: 871
Availability: InStock

Electron grade high purity sulfur hexafluoride is widely used in microelectronics technology as an ideal gas for electron etching.

As a single film fiber isolation layer dopant in the manufacture of optical fiber, as a tracer in the field of air pollution monitoring and hydrogeological detection, contrast agent of contrast-enhanced ultrasound examination of liver tumors is also used as hexatritiated sulfur.

Used as sulfur hexafluoride circuit breaker, interconductance sensor, sulfur hexafluoride lightning rod arc extinguishing gas, used as magnesium aluminum alloy die casting protection gas.

Industrial Grade

Specification	99.995%
Air	≤ 10 ppm
Carbon Tetrafluoride	≤ 2 ppm
Hexafluoroethane	≤ 20 ppm
Octafluoropropane	≤ 5 ppm
Low Sulfide	Not Detected
Moisture	≤ 1 ppm
Acidity as HF	≤ 0.1 ppm
Hydrolysable Fluor ides as HF	≤ 0.3 ppm
Mineral Oil	≤ 1 ppm

Other Grades and Purity Available on Asking

Specification	99.999%
Oxygen + Argon	≤ 1 ppm
Nitrogen	≤ 2 ppm
Methane	≤ 0.1 ppm
Carbon Monoxide	≤ 0.5 ppm
Carbon Tetrafluoride	≤ 0.5 ppm
Carbon Dioxide	≤ 0.5 ppm
Moisture	≤ 3 ppm
Acidity as HF	≤ 0.1 ppm
Hydrolysable Fluor ides as HF	≤ 0.8 ppm

Other Grades and Purity Available on Asking

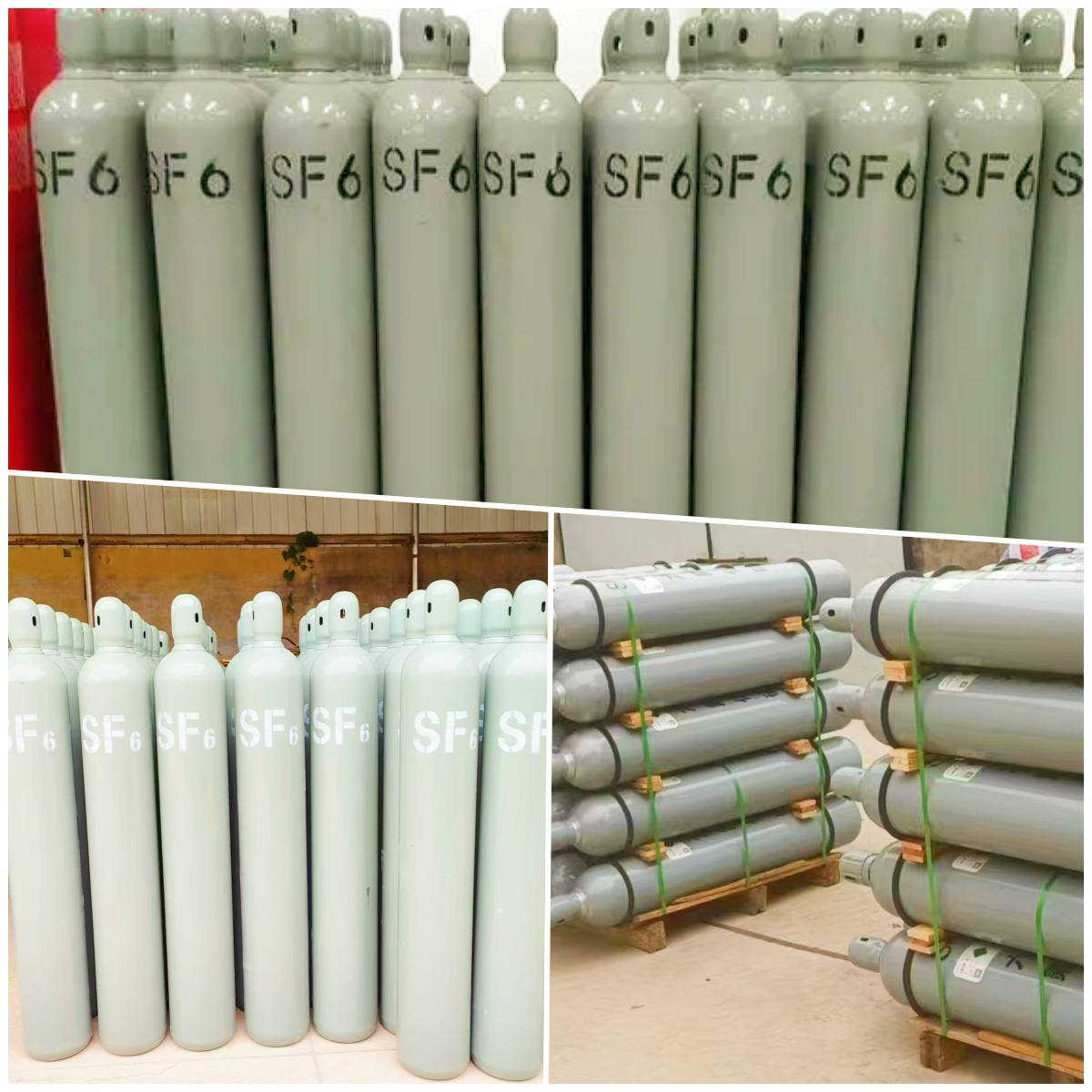

Package Information

Cylinder Capacity	Valve	Weight
40L	CGA 590 / QF-2	50 kgs
47L	CGA 590 / QF-2	58 kgs
50L	CGA 590 / QF-2	62 kgs
500L	CGA 590 / QF-2	625 kgs

Other Packages Available on Asking
